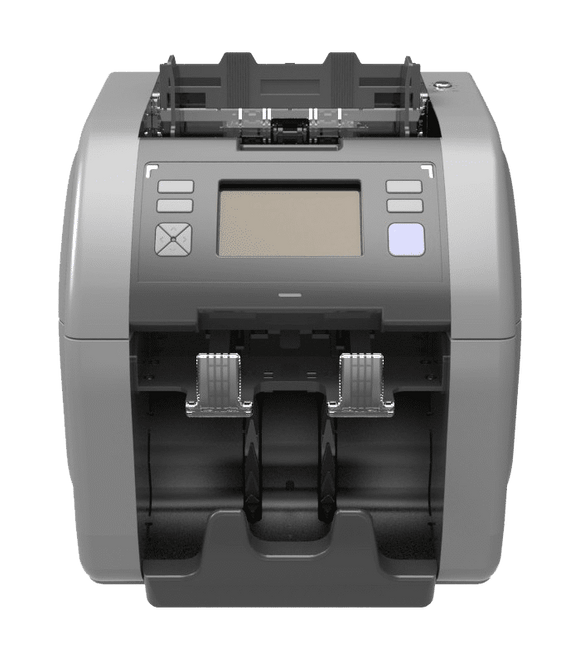

Hitachi iH-110

Hitachi iH-110



Product Description

The iH-110 by Hitachi is a reliable, precise, and multi-functional cash discriminator. and a high-performance, high-speed & heavy-duty currency discriminator with a main Stacker and a full dedicated reject pocket (100 bills).

It can process up to 78,000 bills per hour at high-speed. It is equipped with Dual CIS Sensors for checking image and other security features of banknotes, along with most comprehensive, user-friendly functions necessary for high-volume tellers at banks, casinos, other gaming avenues and super markets. With an ergonomic design, color 4.3" LCD Touch Screen Display and user-friendly user-interface, the iH-110 not only provides tellers trouble-free operation, but, also allows uninterrupted counting experience with dedicated reject pocket, thus increase productivity and job efficiency.

Product Features

  The iH-110 equipped with few innovative user-interface features, such as:

  • Each iH-110 unit is pre-loaded with USD software and can be customized to hold a total of 40 different currencies.
  • Counterfeit Detection & Serial Number Recognition
  • Have the ability to view rejected Images for Counterfeit not right on the Display to see why you bill was rejected.
  • iH-110 further provides higher security standards against the latest counterfeiting attempts through multi-detection technology including IR sensor, while still maintaining a low false alarm level and an excellent acceptance rate of bill recognition.

Specifications

  • Feed System: Roller Friction System
  • Counterfeit Detection: CIS 8-Image (Contact Image Sensor), Infared (IR-array sensor), Magnetic (16 Channel MG Sensor), Ultraviolet (UV sensor)
  • Counting Speed: 1300 Notes/min. (High), 1000 Notes/min. (Medium), 800 Notes/min. (Low)
  • Available Currencies: USD (Standard), EURO, CAD etc (optional). Up to nine currencies can be loaded.
  • Capacity: 500 circulated banknotes (hopper), 300 banknotes (stacker), 100 banknotes (reject)
  • Display: 4.3" LCD Color Touch Screen
  • Interface: LAN(Giga), RS-232, USB(H), USB(S),
  • Options: Remote Display, Thermal or Dot Matrix Printer
  • Power Supply: AC100V ~ 240V, 50/60 Hz.
  • Dimension: 11.8" Width x 12.6" Depth x 12.4" Height
  • Net Weight: 29lbs.
